1. 1. System and domain

   Corrected solution notes. The audio is the original recording and may contain errors or incomplete phrases. Where they differ, use the corrected written solution.

   A system maps input signals to output signals on a specified domain.

   Memory, causality, linearity, time invariance, stability and invertibility are separate properties, not a complete numerical model by themselves.

   Narration transcript

   A system takes one or more input signals, processes them, and produces one or more output signals. For continuous-time systems, we write x of t as the input and y of t as the output, connected by the operator H. The notation y of t equals H applied to x of t means the system transforms the entire input signal into the output. For discrete-time systems, the same idea holds: x of n maps to y of n through the operator S. Systems can be as simple as a multiplier or as complex as an audio equalizer — what matters is that we can fully characterize their behavior through these six properties.

2. 2. Memory and causality

   A memoryless output uses only the current input. A causal output uses only present and past inputs.

   A delay has memory and is causal. A future advance is noncausal as an operator on arbitrary live inputs, though stored data can be processed offline.

   Narration transcript

   A system is memoryless if the output at any time depends only on the input at that same time. For example, y of t equals two x of t is memoryless — to compute the output now, we only need the input now. In contrast, y of n equals x of n minus one has memory because the output depends on a past input sample. Accumulators and integrators always have memory. Causality is related: a causal system's output depends only on present and past inputs, never future ones. Every memoryless system is automatically causal. A non-causal system, like y of t equals x of t plus one, would need to know future inputs — this is impossible to implement in real time. All real-time physical systems are causal.

3. 3. Superposition

   Linearity requires H(ax1+bx2)=aH(x1)+bH(x2) for all allowed signals and scalars.

   Squaring the input fails this test in general. Fixed nonzero initial-state contributions must also be considered.

   Narration transcript

   Linearity is perhaps the most powerful system property. A system H is linear if it satisfies two conditions: homogeneity and additivity — together called superposition. Homogeneity means scaling the input scales the output by the same factor: H applied to a times x of t equals a times H applied to x of t. Additivity means the response to a sum of inputs equals the sum of the individual responses: H applied to x one plus x two equals H of x one plus H of x two. Combined, superposition states: H applied to a x one plus b x two equals a H of x one plus b H of x two. A non-linear example: y of t equals x squared of t. Check: H of a x equals a squared x squared, but a times H of x equals a times x squared. These are not equal, so the system is nonlinear.

4. 4. Time-shift test

   Compare applying the system after shifting the input with shifting the original output.

   For y[n]=n x[n], the coefficients n and n−n0 differ in the two paths, so the system is time-varying.

   Narration transcript

   A system is time-invariant if shifting the input in time produces the same shift in the output. Formally: if y of t is the response to x of t, then the response to x of t minus t zero must be y of t minus t zero. We use a two-path test to verify this. Path one: shift the input first, then apply the system. Path two: apply the system first, then shift the output. If both paths give the same result for every shift t zero, the system is time-invariant. Example: y of n equals n times x of n is time-varying, because the coefficient n changes with time. Shifting the input gives n times x of n minus n zero, but shifting the output gives n minus n zero times x of n minus n zero. These are different.

5. 5. Stability and invertibility

   BIBO stability requires every bounded input to produce a bounded output. Invertibility requires distinct allowed inputs to have distinct outputs.

   Multiplication by two is invertible; squaring arbitrary signed real signals is not. Multiplication by exp(t) is unstable on an unbounded future time axis.

   Narration transcript

   A system is BIBO stable — bounded-input bounded-output stable — if every bounded input produces a bounded output. If the input satisfies the absolute value of x of t less than or equal to M x for all t, then the output must satisfy the absolute value of y of t less than or equal to M y for some finite M y. For example, y of t equals e to the t times x of t is unstable: even a bounded input like x of t equals one produces an output that grows without bound. Invertibility means a system has a unique inverse: different inputs always produce different outputs. An invertible system is one-to-one. Example: y of t equals two x of t is invertible, with inverse system x of t equals one half y of t. Non-invertible example: y of t equals x squared of t — both x of t and negative x of t produce the same output, so we cannot recover the input.

6. 6. Correct the two-sample example

   y[n]=x[n]+x[n−1] has memory and is causal, linear, time-invariant and BIBO stable, with output bound 2M for input bound M.

   It is a sum; a normalized average additionally divides by two.

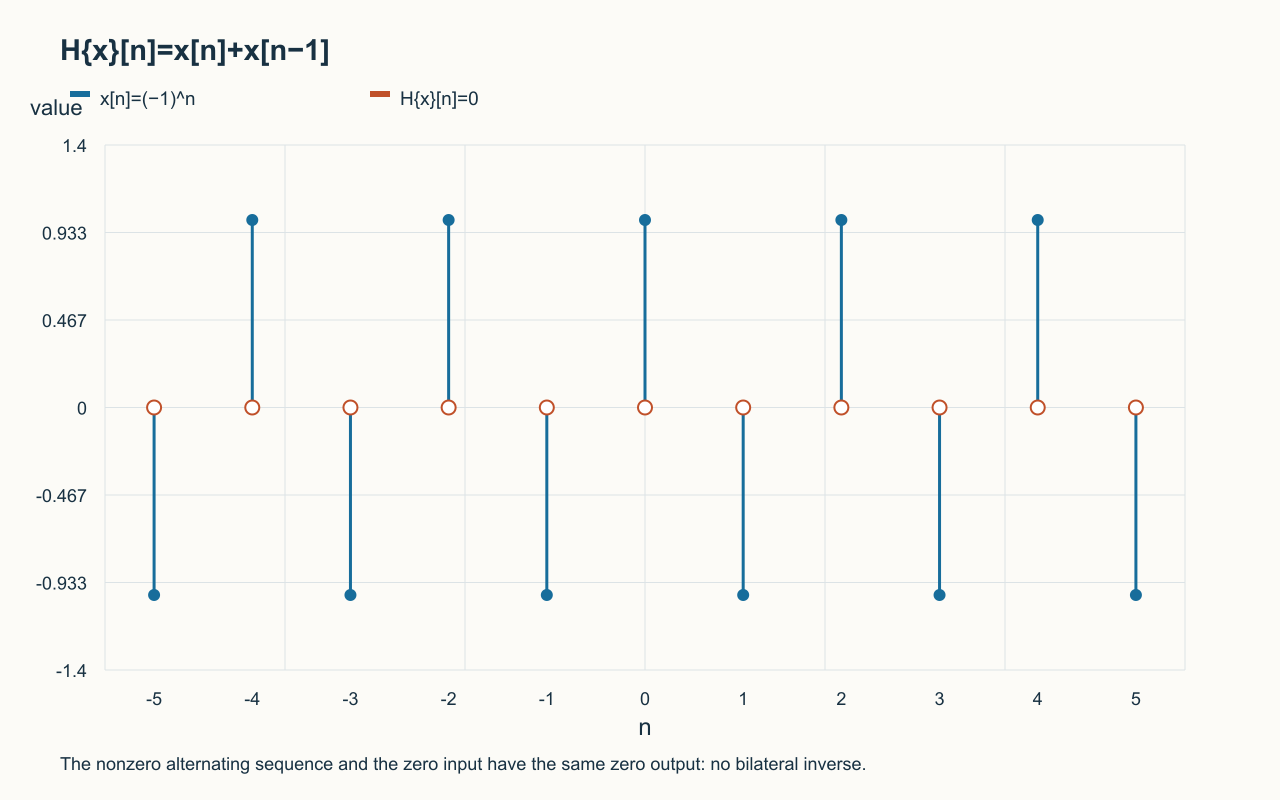

   On bilateral sequences it is not injective: zero input and x[n]=(−1)ⁿ both produce zero output.

   Forward recursion x[n]=y[n]−x[n−1] gives uniqueness only when a boundary value such as x[n0−1] is supplied.

   Narration transcript

   Let's test all six properties on the discrete-time system y of n equals x of n plus x of n minus one. This is a two-sample averager that adds the current input to the previous one. Memory: yes — the output depends on x of n minus one, a past sample. Causality: yes — it uses only the present and one past sample, no future inputs. Linearity: yes — H of a x one plus b x two equals a x one of n plus a x one of n minus one plus b x two of n plus b x two of n minus one, which equals a H of x one plus b H of x two. Time invariance: yes — shifting x gives x of n minus n zero plus x of n minus one minus n zero, which is exactly y of n minus n zero. Stability: yes — if the absolute value of x of n is bounded by M, then the absolute value of y of n is at most two M, which is finite. Invertibility: yes — given y of n and y of n minus one, we can recover x of n recursively. This system is linear and time-invariant, so it is an L T I system.

7. 7. Review



   State the input domain and initial conditions before claiming an inverse.

   The two-tap sum is LTI and stable but is not unconditionally invertible on bilateral sequences. For zero-state LTI systems, the impulse response provides the full input/output operator under suitable convolution conditions.

   Narration transcript

   Today we covered the six fundamental properties of systems. Memory: does the output depend on past or future inputs? Causality: does the output depend only on past and present inputs, never future? Linearity: does the system satisfy superposition — homogeneity and additivity? Time invariance: does a time shift in the input produce the same shift in the output? Stability: does every bounded input produce a bounded output? Invertibility: can we uniquely recover the input from the output? A system that is both linear and time-invariant is called an L T I system. L T I systems are central to signals and systems because they can be fully characterized by their impulse response — a topic we'll explore in the next lessons.
